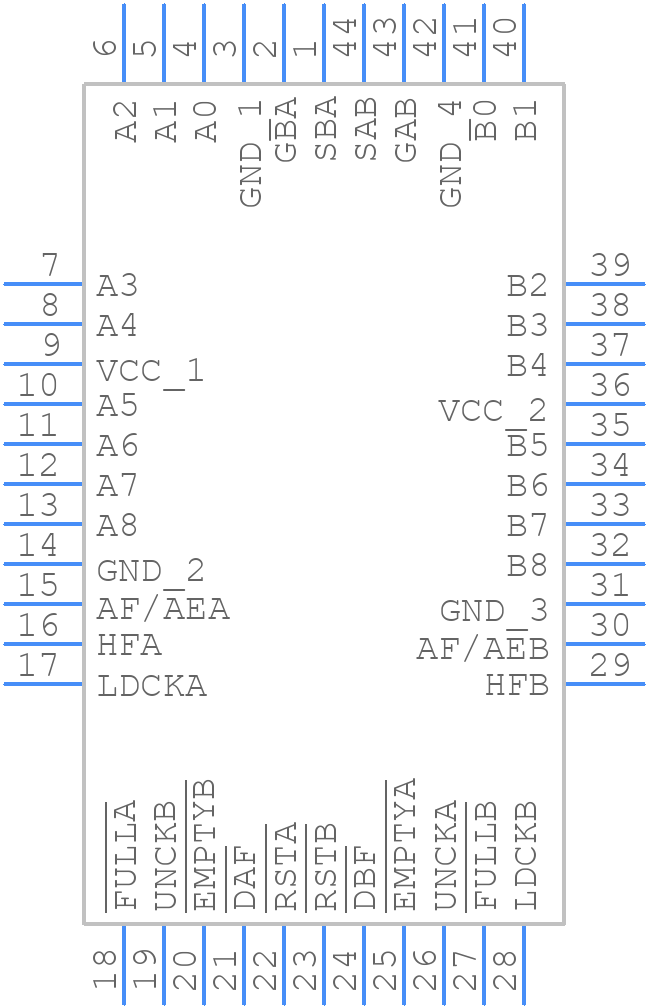

SN74ACT2235-40FN - Texas Instruments

SN74ACT2235-40FN Details

• Manufacturer Part Number:

  SN74ACT2235-40FN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, LCC-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Access Time-Max:

  35 ns

• Additional Feature:

  BYPASS-XCVR

• Clock Frequency-Max (fCLK):

  25 MHz

• Cycle Time:

  40 ns

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e4

• Length:

  16.585 mm

• Memory Density:

  9216 bit

• Memory IC Type:

  BI-DIRECTIONAL FIFO

• Memory Width:

  9

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  44

• Number of Words:

  1024 words

• Number of Words Code:

  1000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  1KX9

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.585 mm
