The recommended operating voltage range for the SN74ACT534PWR is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.6V to 5.5V, but the performance may vary.
To ensure signal integrity, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing trace lengths, and using termination resistors. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The SN74ACT534PWR can support clock frequencies up to 100 MHz, but this may vary depending on the specific application and operating conditions. It's essential to consult the datasheet and perform thorough testing to ensure the device meets your specific requirements.
When using the SN74ACT534PWR in a system with multiple power rails, it's essential to ensure that the power rails are sequenced correctly to prevent damage to the device. Consult the datasheet and application notes for specific guidance on power sequencing and consider using a power sequencing controller if necessary.
The thermal derating for the SN74ACT534PWR is specified in the datasheet, and it's essential to consider this when designing your system. As the device temperature increases, the performance may degrade, and the device may not meet its specified parameters. Ensure proper thermal management, such as using heat sinks or thermal interfaces, to maintain optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74ACT534PWR Overview

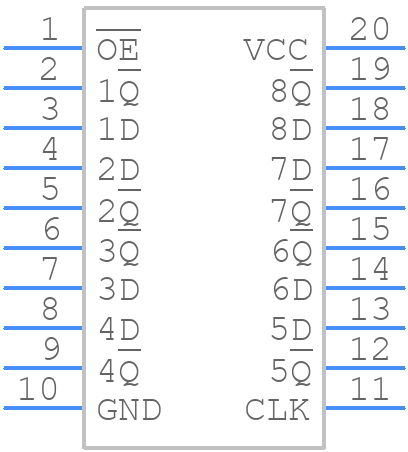

Use the download button to access the SN74ACT534PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Bus Driver/Transceivers
