SN74ACT564DWR - Texas Instruments

Description: Flip-Flops Octal D-Ty Edge-Trig F-F W/3-State Otpt

Download SN74ACT564DWR Model

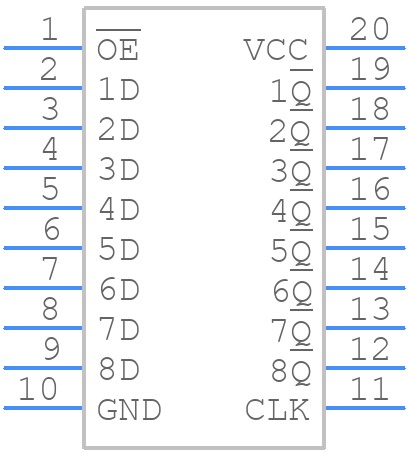

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74ACT564DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
SN74ACT564DWR - Texas Instruments  - 3D model - Small Outline Packages - DW0020A
click to zoom

SN74ACT564DWR Details

  • Manufacturer Part Number:

    SN74ACT564DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BROADSIDE VERSION OF 534

  • Control Type:

    INDEPENDENT CONTROL

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ACT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    11.5 ns

  • Propagation Delay (tpd):

    11.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

SN74ACT564DWR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SN74ACT564DWR is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.6V to 5.5V, but the performance may vary.
  • The SN74ACT564DWR has a maximum junction temperature (TJ) of 150°C. To ensure proper thermal management, it's recommended to keep the device within a safe operating temperature range by providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The SN74ACT564DWR can handle clock frequencies up to 100 MHz. However, the actual clock frequency limit may vary depending on the system design, capacitive loading, and other factors. It's recommended to consult the datasheet and perform thorough testing to determine the maximum clock frequency for a specific application.
  • To ensure signal integrity when using the SN74ACT564DWR, it's recommended to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing, and providing adequate decoupling capacitors. Additionally, it's essential to ensure that the device is properly terminated and that the signal levels are within the specified range.
  • The SN74ACT564DWR has an ESD rating of 2 kV human-body model (HBM) and 200 V machine model (MM). It's essential to follow proper ESD handling procedures when handling the device to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74ACT564DWR Overview

Use the download button to access the SN74ACT564DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Bus Driver/Transceivers
