The maximum operating frequency of the SN74AHCT139D is 100 MHz, but it can vary depending on the system design and load conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatch, and adding termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74AHCT139D can be used in a 3.3V system, but you need to ensure that the input signals are within the recommended voltage range (VCC - 0.5V to VCC + 0.5V). Additionally, you may need to adjust the output voltage levels using external resistors or voltage translators to match the 3.3V system requirements.
To ensure proper power sequencing, power up the devices in the correct order, typically from the lowest voltage to the highest voltage. Also, consider using power sequencing controllers or voltage supervisors to manage the power-up sequence and prevent voltage overshoot or undershoot.
The SN74AHCT139D has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Also, consider using thermal simulation tools to analyze and optimize your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74AHCT139D Overview

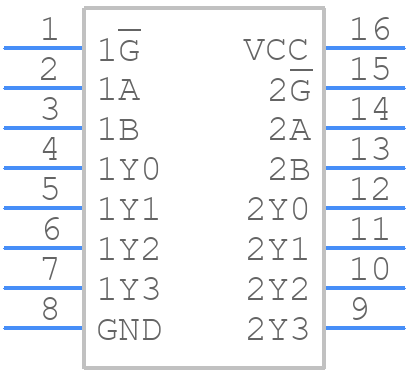

Use the download button to access the SN74AHCT139D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Decoder/Drivers
