The maximum operating frequency of the SN74ALS137AD is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatch, and using termination resistors when necessary. Additionally, follow the recommended operating conditions and signal levels specified in the datasheet.
Yes, the SN74ALS137AD is compatible with 3.3V systems, but it requires a 5V supply voltage (VCC) to operate correctly. You can use a voltage regulator or level translator to interface with 3.3V logic.
The power consumption of the SN74ALS137AD depends on the operating frequency, input signal levels, and output load. Typically, it consumes around 20-30 mA of current at 5V and 50 MHz operating frequency.
To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The SN74ALS137AD has a maximum junction temperature of 150°C, so ensure that the operating temperature is within the recommended range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74ALS137AD Overview

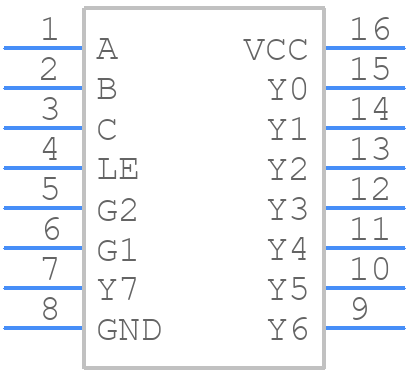

Use the download button to access the SN74ALS137AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A,
or try a keyword search, such as Decoder/Drivers
