SN74ALS156N - Texas Instruments

Description: LOGIC, DECODER/DMUX DUAL 1-4 ,100µA, 8mA ,4.5V ~ 5.5V ,0°C ~ 70°C ,16-PDIP N

Download SN74ALS156N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

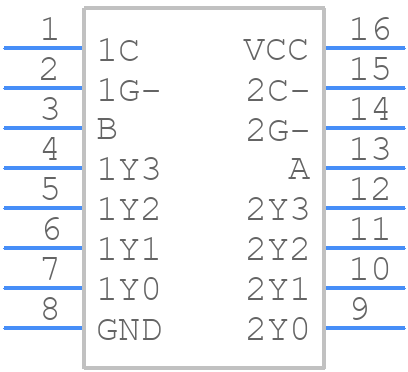

SN74ALS156N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74ALS156N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T16)_2025-1.1-1
click to zoom
3D Models
SN74ALS156N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T16)_2025-1.1-1
click to zoom

SN74ALS156N Details

  • Manufacturer Part Number:

    SN74ALS156N

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    ALS

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    9 mA

  • Prop. Delay@Nom-Sup:

    55 ns

  • Propagation Delay (tpd):

    55 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SN74ALS156N Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74ALS156N is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive package, and keeping the device within its recommended operating temperature range (typically -40°C to 85°C).
  • The recommended power-on sequence for the SN74ALS156N is to apply power to the VCC pin before applying any input signals. This helps prevent latch-up and ensures proper device operation.
  • To handle ESD protection for the SN74ALS156N, it's recommended to follow proper ESD handling procedures, such as using an ESD wrist strap, ESD mat, or ESD bag, and ensuring that the device is properly grounded during handling and assembly.
  • The recommended layout and routing for the SN74ALS156N involves keeping signal traces short and direct, using a solid ground plane, and avoiding vias and sharp corners in the signal paths. It's also essential to follow proper decoupling and bypassing techniques to minimize noise and ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SN74ALS156N Overview

Use the download button to access the SN74ALS156N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74A, or try a keyword search, such as Decoder/Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
