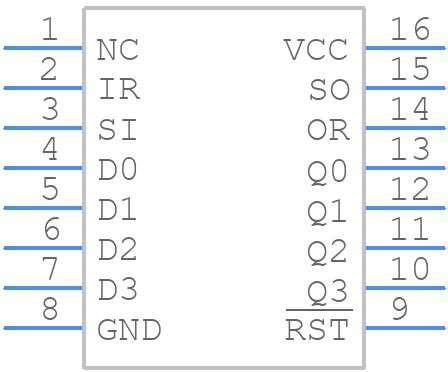

SN74ALS236N - Texas Instruments

SN74ALS236N Details

• Manufacturer Part Number:

  SN74ALS236N

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  0.300 INCH, PLASTIC, MS-001BB, DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.71

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Access Time-Max:

  22 ns

• Clock Frequency-Max (fCLK):

  30 MHz

• Cycle Time:

  33.33 ns

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Memory Density:

  256 bit

• Memory IC Type:

  OTHER FIFO

• Memory Width:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Number of Words:

  64 words

• Number of Words Code:

  64

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  64X4

• Output Characteristics:

  3-STATE

• Output Enable:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  0.145 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
