SN74ALS574BNSR - Texas Instruments

Description: Octal D-Type Edge-Triggered Flip-Flops with 3-State Outputs

Download SN74ALS574BNSR Model

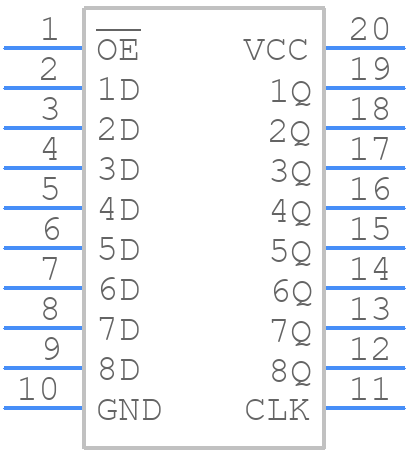

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74ALS574BNSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G20)
click to zoom
3D Models
SN74ALS574BNSR - Texas Instruments  - 3D model - Small Outline Packages - NS (R-PDSO-G20)
click to zoom

SN74ALS574BNSR Details

  • Manufacturer Part Number:

    SN74ALS574BNSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ALS

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max Frequency@Nom-Sup:

    35000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    30 mA

  • Prop. Delay@Nom-Sup:

    14 ns

  • Propagation Delay (tpd):

    14 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

SN74ALS574BNSR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74ALS574BNSR is typically 100 MHz, but it can vary depending on the operating conditions and the load capacitance. It's recommended to check the timing characteristics in the datasheet and perform simulations or testing to determine the maximum clock frequency for a specific application.
  • To ensure proper power supply and decoupling, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Add decoupling capacitors (e.g., 0.1 μF and 10 μF) between VCC and GND, as close to the device as possible, to filter out noise and reduce power supply ripple.
  • The output pins of the SN74ALS574BNSR are designed to drive standard TTL loads. For proper termination, connect a 330 Ω to 1 kΩ pull-up resistor to VCC, and a 1 kΩ to 2 kΩ pull-down resistor to GND, depending on the load requirements and noise immunity needs.
  • The SN74ALS574BNSR is a 5V device, but it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels will be lower, and the noise margin will be reduced. It's recommended to use a level translator or a voltage regulator to ensure proper voltage levels and noise immunity.
  • The asynchronous clear (CLR) input is active-low, meaning it clears the flip-flops when driven low. To ensure proper operation, connect the CLR input to a logic low (GND) or a logic high (VCC) through a pull-up or pull-down resistor, depending on the application requirements. Avoid floating the CLR input, as it may cause unpredictable behavior.
