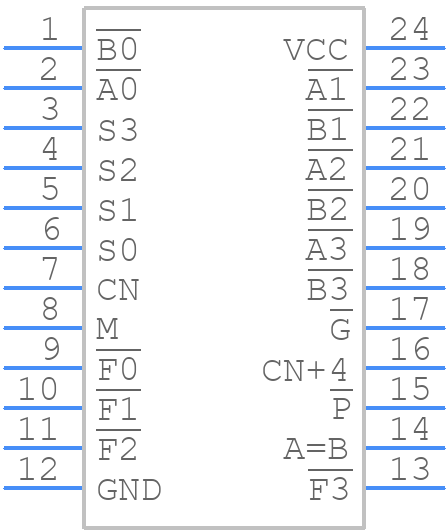

SN74AS181ADW - Texas Instruments

SN74AS181ADW Details

• Manufacturer Part Number:

  SN74AS181ADW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  GREEN, PLASTIC, SOIC-24

• Pin Count:

  24

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD

• Family:

  AS

• JESD-30 Code:

  R-PDSO-G24

• Length:

  15.4 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  ARITHMETIC LOGIC UNIT

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power Supply Current-Max (ICC):

  200 mA

• Propagation Delay (tpd):

  21 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.5 mm
