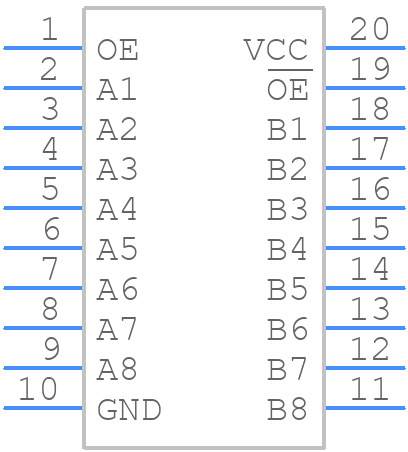

SN74CB3Q3345PWR - Texas Instruments

SN74CB3Q3345PWR Details

• Manufacturer Part Number:

  SN74CB3Q3345PWR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Pin Count:

  20

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Control Type:

  ENABLE LOW/HIGH

• Count Direction:

  UNIDIRECTIONAL

• Family:

  CB3Q/3VH/3C/2B

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Length:

  6.5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  8

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  2 mA

• Prop. Delay@Nom-Sup:

  0.2 ns

• Propagation Delay (tpd):

  0.2 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
