The maximum operating frequency of the SN74CBT3126DR is 250 MHz, but it can vary depending on the specific application and system design.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using simulation tools to analyze signal integrity and make adjustments as necessary.
Yes, the SN74CBT3126DR can be used in a 3.3V system, but it's essential to ensure that the input voltage does not exceed the maximum rating of 4.6V. Additionally, the output voltage will be limited to 3.3V, which may affect the signal amplitude and noise margin.
To handle power sequencing, ensure that the power supply to the SN74CBT3126DR is turned on after the power supply to the input signals. This prevents the device from drawing excessive current or experiencing voltage stress during power-up. Consider using power sequencing controllers or voltage supervisors to manage power-up and power-down sequences.
The recommended termination scheme for the SN74CBT3126DR is a series termination resistor (Rs) of 22-33 ohms, followed by a parallel termination resistor (Rt) of 50-75 ohms to VCC or GND. This scheme helps to reduce signal reflections, improve signal integrity, and minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74CBT3126DR Overview

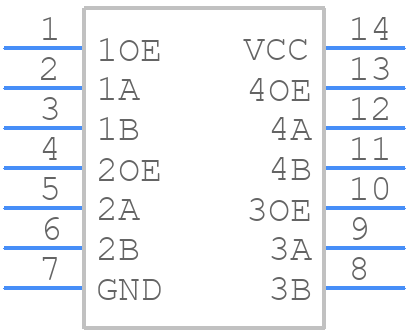

Use the download button to access the SN74CBT3126DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74C,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
