SN74F1056DR - Texas Instruments

Description: Schottky Diodes & Rectifiers 8-bit Schottky Barrier Diode

Download SN74F1056DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

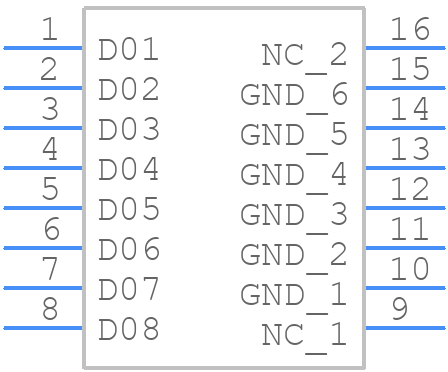

SN74F1056DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74F1056DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN74F1056DR - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN74F1056DR Details

  • Manufacturer Part Number:

    SN74F1056DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Interface IC Type:

    DIODE BUS TERMINATION ARRAY

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Signal Lines:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN74F1056DR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74F1056DR is 100 MHz, but it can vary depending on the specific application and operating conditions.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The recommended termination scheme for the SN74F1056DR is to use a 50-ohm resistor in series with the output pin, and a 50-ohm resistor to ground on the input pin. This helps to reduce reflections and improve signal integrity.
  • Yes, the SN74F1056DR can be used in a 3.3V system, but the input and output voltage levels must be adjusted accordingly. The device is specified to operate from 4.5V to 5.5V, but it can tolerate input voltages as low as 2.5V.
  • The SN74F1056DR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, or reducing the power consumption of the device.
