PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Count Direction:
RIGHT
Family:
HC/UH
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
9.9 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup:
25000000 Hz
Moisture Sensitivity Level:
1
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
3-STATE
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
70 mA
Propagation Delay (tpd):
200 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
3.9 mm
fmax-Min:
29 MHz
SN74HC595DTE4 Frequently Asked Questions (FAQs)
The maximum clock frequency for the SN74HC595DTE4 is 100 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the datasheet for specific frequency limits at different operating conditions.
Yes, the SN74HC595DTE4 can be used as a level shifter, but it's not its primary function. It's designed as a shift register, and its output voltage levels may not be suitable for all level-shifting applications. However, it can be used to shift voltage levels from 5V to 3.3V or vice versa, but with some limitations and considerations.
To ensure reliable data transfer with the SN74HC595DTE4, make sure to follow proper clocking and data loading procedures. Use a stable clock signal, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the output pins to prevent data corruption due to bus contention.
Yes, the SN74HC595DTE4 can be used in a 5V system with 3.3V logic, but you'll need to ensure that the input voltage levels are compatible with the 3.3V logic. You may need to use level translators or voltage dividers to ensure proper signal levels. Additionally, be aware of the output voltage levels, which may not be compatible with 3.3V logic.
The power consumption of the SN74HC595DTE4 depends on the operating frequency, voltage, and temperature. According to the datasheet, the typical quiescent current is around 10 μA, and the dynamic current consumption is around 10 mA at 50 MHz. However, this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74HC595DTE4 Overview

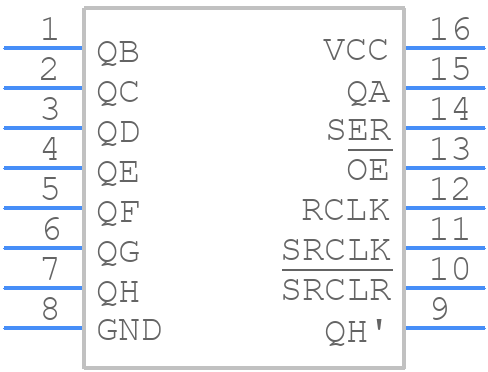

Use the download button to access the SN74HC595DTE4 schematic symbol, PCB footprint, and 3D model.
