Part Image

SN74HCS125BQAR - Texas Instruments

Description: SN74HCS125BQAR

Download SN74HCS125BQAR Model

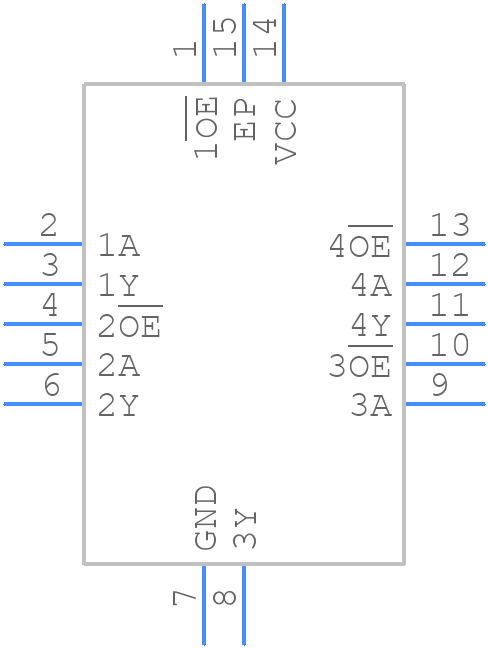

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74HCS125BQAR - Texas Instruments PCB footprint - Other - Other - SN74HCS125BQAR-3
click to zoom
3D Models
SN74HCS125BQAR - Texas Instruments  - 3D model - Other - SN74HCS125BQAR-3
click to zoom

SN74HCS125BQAR Details

  • Manufacturer Part Number:

    SN74HCS125BQAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WQFN-14

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.002 mA

  • Prop. Delay@Nom-Sup:

    26 ns

  • Propagation Delay (tpd):

    39 ns

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74HCS125BQAR Overview

Use the download button to access the SN74HCS125BQAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74H, or try a keyword search, such as Bus Driver/Transceivers

Parts related to SN74HCS125BQAR

Showing 0 results

SN74HCS125BQAR Alternates

Showing results

Image Part Number Model
Part Image SN74HCS125QBQARQ1 Texas Instruments

Automotive Schmitt-trigger inputs quadruple bus buffer gates with 3-state outputs 14-WQFN -40 to 125
