The maximum clock frequency for the SN74HCS595QBQBRQ1 is 30 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the datasheet for specific frequency limits at different operating conditions.
Yes, the SN74HCS595QBQBRQ1 can be used as a level shifter, but it's not its primary function. It's designed as a shift register, and its output voltage levels may not be suitable for all level-shifting applications. If level shifting is the primary requirement, a dedicated level shifter IC may be a better choice.
To ensure reliable data transfer with the SN74HCS595QBQBRQ1, make sure to follow proper clocking and data loading procedures. Ensure that the clock signal is clean and has a sufficient rise and fall time. Also, ensure that the data is loaded into the shift register during the correct clock phase (rising or falling edge, depending on the mode).
The SN74HCS595QBQBRQ1 is a 3.3V device, but it can tolerate 5V inputs. However, the output voltage levels will still be 3.3V. If you need to interface with a 5V system, you may need to use level shifters or voltage translators to ensure compatibility.
The power consumption of the SN74HCS595QBQBRQ1 depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical quiescent current is around 10 μA, and the dynamic current can be up to 20 mA at 30 MHz. However, it's recommended to check the datasheet for specific power consumption values at your desired operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74HCS595QBQBRQ1 Overview

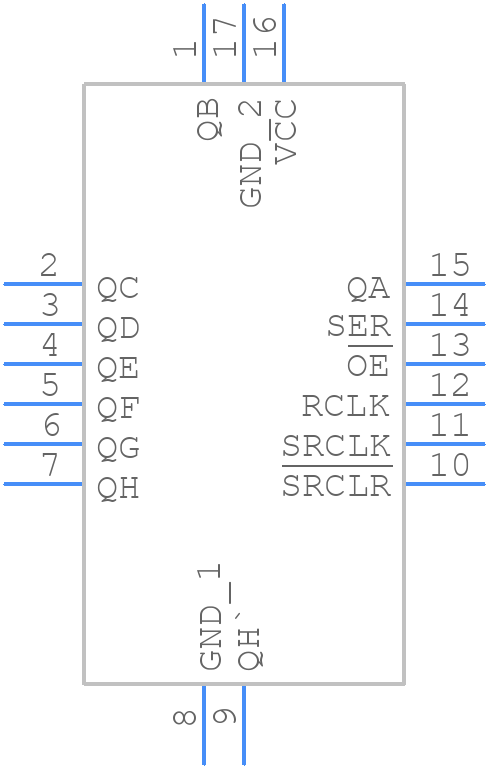

Use the download button to access the SN74HCS595QBQBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74H,
or try a keyword search, such as Shift Registers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
