SN74LS624NSR - Texas Instruments

Description: Oscillator VCO 1.1MHz to 25MHz 45pF Squarewave 50% 5V 14-Pin SOP SMD T/R

Download SN74LS624NSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

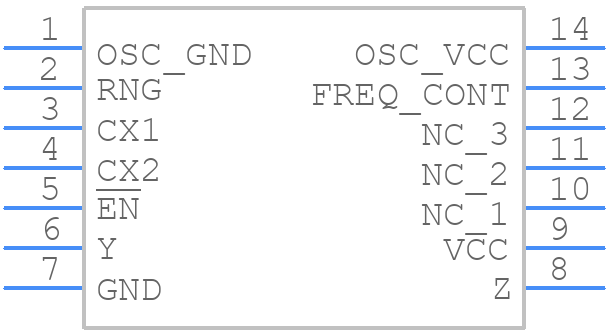

SN74LS624NSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS624NSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS
click to zoom
3D Models
SN74LS624NSR - Texas Instruments - 3D model - Small Outline Packages - NS
click to zoom

SN74LS624NSR Details

  • Manufacturer Part Number:

    SN74LS624NSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Control Voltage-Max:

    5 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    70 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SN74LS624NSR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LS624NSR is 30 MHz, but it can vary depending on the specific application and system design.
  • It's recommended to power up the VCC pin before the input signals and power down the VCC pin after the input signals to prevent unwanted latch-up or damage to the device.
  • The recommended operating voltage range for the SN74LS624NSR is 4.75 V to 5.25 V, with a typical operating voltage of 5 V.
  • To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device operates within its specified temperature range (-40°C to 85°C).
  • The maximum input voltage that can be applied to the SN74LS624NSR is 7 V, but it's recommended to keep the input voltage within the recommended operating voltage range (4.75 V to 5.25 V) to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS624NSR Overview

Use the download button to access the SN74LS624NSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Voltage Controlled Oscillators
