Part Image

SN74LS628DR - Texas Instruments

Description: Voltage-controlled oscillator

Download SN74LS628DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

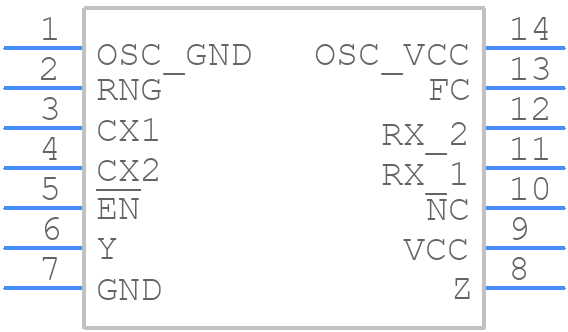

Symbol
SN74LS628DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS628DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
SN74LS628DR - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

SN74LS628DR Details

  • Manufacturer Part Number:

    SN74LS628DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LS

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    55 mA

  • Prop. Delay@Nom-Sup:

    15 ns

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN74LS628DR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LS628DR is 30 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 85°C).
  • The recommended power-on sequence for the SN74LS628DR is to apply power to the VCC pin before applying any input signals, and to ensure that the power supply is stable and within the specified voltage range (4.75V to 5.25V) before applying any input signals.
  • To handle bus contention when using the SN74LS628DR, it is recommended to use bus buffers or transceivers to isolate the device from the system bus, and to ensure that the device is properly terminated to prevent reflections and signal degradation.
  • The maximum capacitive load that the SN74LS628DR can drive is 100 pF, but it can vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS628DR Overview

Use the download button to access the SN74LS628DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Other Logic ICs
