- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SN74LS75D
- Part Number SN74LS75D
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D (R-PDSO-G16)
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SN74LS75D Details
-
Manufacturer Part Number:
SN74LS75D
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
SN74LS75D Frequently Asked Questions (FAQs)
-
The maximum clock frequency of the SN74LS75D is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at higher frequencies.
-
To ensure proper power supply and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the power supply lines with 0.1uF ceramic capacitors as close to the device as possible. Additionally, use a 10uF electrolytic capacitor to filter out any noise or ripple on the power supply lines.
-
The recommended operating temperature range for the SN74LS75D is 0°C to 70°C. However, the device can operate up to 85°C with reduced performance and reliability. It's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and lifespan.
-
The asynchronous reset input (R) on the SN74LS75D is active-low, meaning it should be pulled low to reset the device. When the reset input is asserted, the device will reset and clear all internal states. It's essential to ensure that the reset input is properly debounced and synchronized with the clock signal to avoid any potential issues.
-
The maximum input voltage that the SN74LS75D can tolerate is 5.5V. Exceeding this voltage can cause damage to the device or affect its performance. It's essential to ensure that the input voltage is within the recommended range to maintain the device's reliability and performance.
Trust Checks
System Verified
SN74LS75D Overview

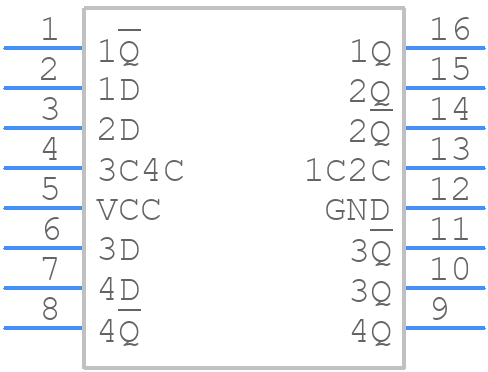

Use the download button to access the SN74LS75D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as FF/Latches
