SN74LS96D - Texas Instruments

Description: Counter Shift Registers Serial / parallel shift registers 16-SOIC 0 to 70

Download SN74LS96D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

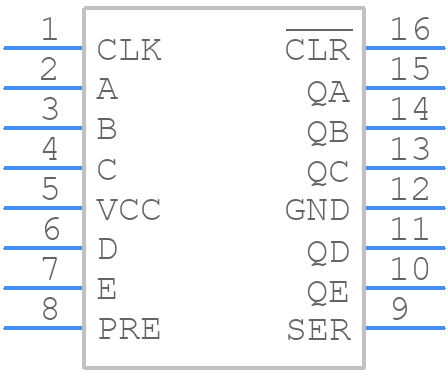

SN74LS96D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS96D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN74LS96D - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN74LS96D Details

  • Manufacturer Part Number:

    SN74LS96D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    CLEAR FOLLOWED BY SELECTIVE PRESET IMITATES LOAD

  • Count Direction:

    RIGHT

  • Family:

    LS

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    PARALLEL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    25000000 Hz

  • Number of Bits:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    20 mA

  • Propagation Delay (tpd):

    40 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    25 MHz
