SN74LV4046AN - Texas Instruments

Description: High-Speed CMOS Logic Phase-Locked Loop with VCO

Download SN74LV4046AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

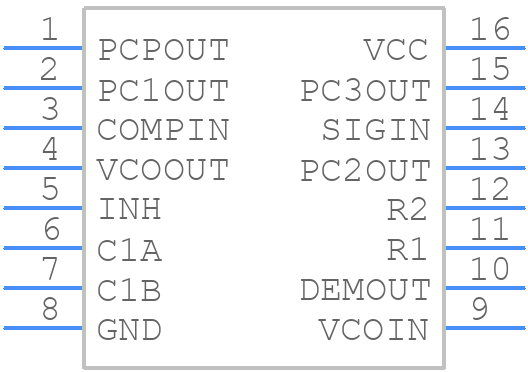

SN74LV4046AN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LV4046AN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - d(r-pdso-g16)
click to zoom
3D Models
SN74LV4046AN - Texas Instruments - 3D model - Small Outline Packages - d(r-pdso-g16)
click to zoom

SN74LV4046AN Details

  • Manufacturer Part Number:

    SN74LV4046AN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SN74LV4046AN Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SN74LV4046AN is 2.5V to 3.6V, although it can operate as low as 2.3V with reduced performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • While the SN74LV4046AN is designed for low-voltage operation, it can tolerate 5V inputs, but the output voltage will be limited to the supply voltage (VCC). However, it is not recommended to operate the device at 5V continuously, as it may exceed the maximum power dissipation rating.
  • It is recommended to power up the SN74LV4046AN in the following sequence: VCC, then input signals, and then output loads. When powering down, the sequence should be reversed: output loads, then input signals, and finally VCC.
  • The maximum clock frequency supported by the SN74LV4046AN is 100 MHz, although this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LV4046AN Overview

Use the download button to access the SN74LV4046AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as PLL or Frequency Synthesis Circuits
