SN74LV4066ADGVR - Texas Instruments

Description: Quadruple Bilateral Analog Switch

Download SN74LV4066ADGVR Model

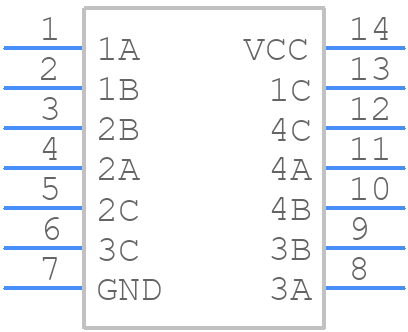

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LV4066ADGVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGV(R-PDSO-G14)
click to zoom
3D Models
SN74LV4066ADGVR - Texas Instruments  - 3D model - Small Outline Packages - DGV(R-PDSO-G14)
click to zoom

SN74LV4066ADGVR Details

  • Manufacturer Part Number:

    SN74LV4066ADGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    Configuration : 1:1 SPST

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    50 MHz

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    40 dB

  • On-state Resistance Match-Nom:

    6 Ω

  • On-state Resistance-Max (Ron):

    180 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    25 ns

  • Switch-on Time-Max:

    25 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.6 mm
