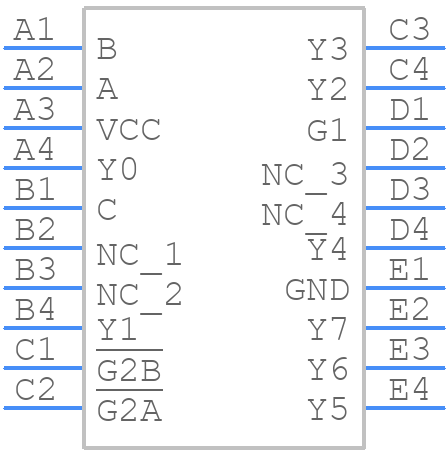

SN74LVC138AZQNR - Texas Instruments

SN74LVC138AZQNR Details

• Manufacturer Part Number:

  SN74LVC138AZQNR

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

  VFBGA-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  1993-04-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  TWO ACTIVE-LOW AND ONE ACTIVE-HIGH ENABLE INPUTS

• Family:

  LVC/LCX/Z

• Input Conditioning:

  STANDARD

• JESD-30 Code:

  R-PBGA-B20

• JESD-609 Code:

  e1

• Length:

  4 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  3-LINE TO 8-LINE DECODER

• Max I(ol):

  0.024 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA20,4X5,25

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.01 mA

• Prop. Delay@Nom-Sup:

  6.7 ns

• Propagation Delay (tpd):

  22 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
