CONTAINS 5 DRIVERS, 4 RECEIVERS AND EIGHT BI-DIRECTIONAL LINES
Differential Output:
NO
Driver Number of Bits:
8
High Level Input Current-Max:
0.00005 A
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
IEEE 1284
JESD-30 Code:
R-PDSO-G48
JESD-609 Code:
e4
Length:
15.875 mm
Moisture Sensitivity Level:
1
Number of Bits:
19
Number of Functions:
19
Number of Terminals:
48
Operating Temperature-Max:
70 °C
Out Swing-Min:
1.46 V
Output Characteristics:
3-STATE
Output Low Current-Max:
0.014 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP48,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
40 ns
Receiver Number of Bits:
8
Seated Height-Max:
2.79 mm
Supply Current-Max:
45 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
5.5 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
40 ns
Width:
7.5 mm
SN74LVC161284DL Frequently Asked Questions (FAQs)
The maximum operating frequency of the SN74LVC161284DL is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as impedance matching, signal routing, and termination. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections and ringing.
Yes, the SN74LVC161284DL can be used in a 3.3V system. The recommended power supply voltage is 3.3V ± 0.3V, and the device can operate with a supply current of up to 70 mA.
To minimize clock skew and jitter, use a high-quality clock source, and ensure that the clock signal is properly terminated and routed. Additionally, consider using clock conditioning circuits, such as clock buffers or PLLs, to reduce jitter and skew.
The maximum capacitive load that the SN74LVC161284DL can drive is 50 pF, but this can vary depending on the specific application and operating conditions. It's recommended to check the device's output impedance and capacitive load tolerance to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LVC161284DL Overview

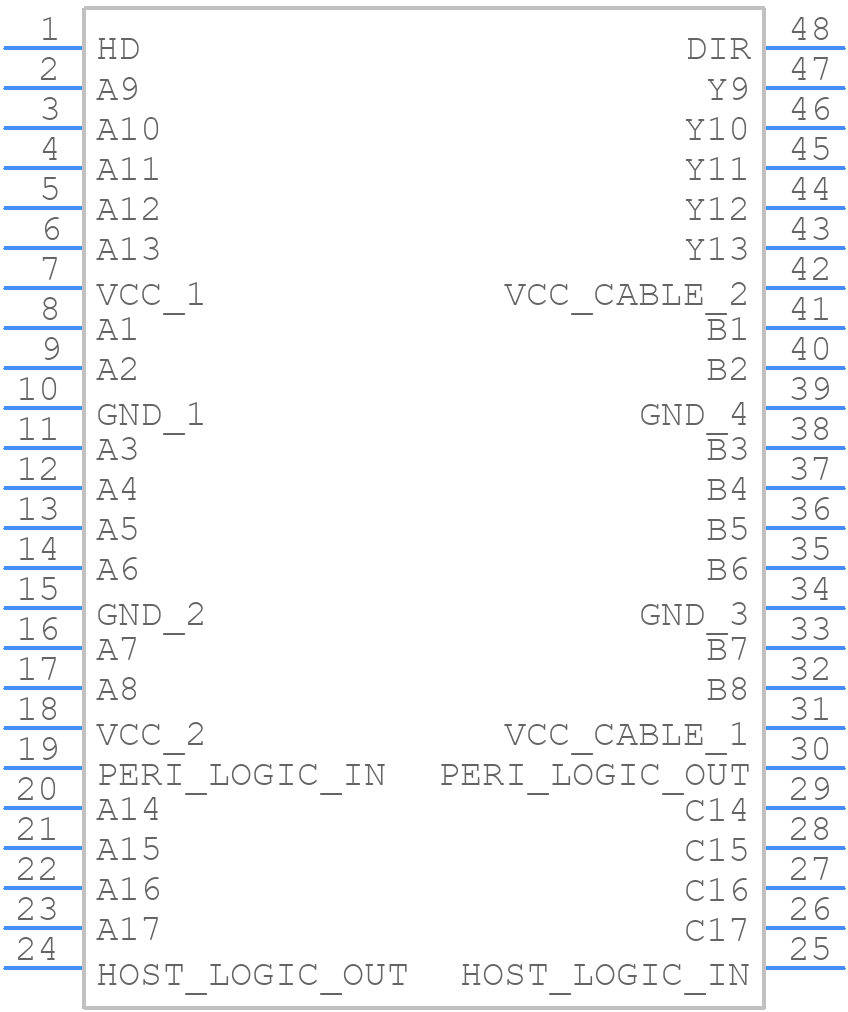

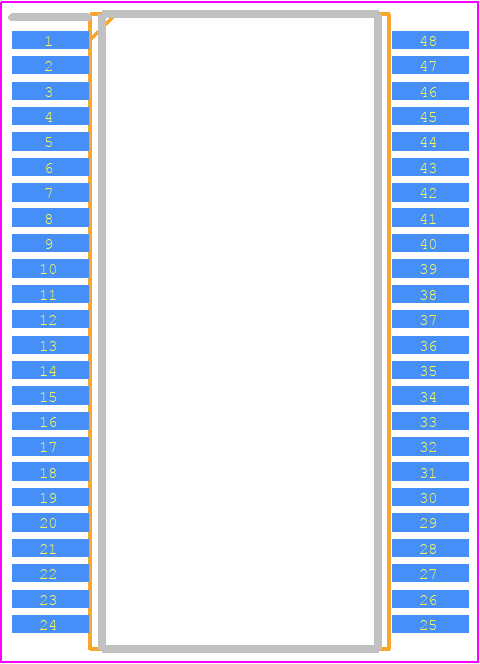

Use the download button to access the SN74LVC161284DL schematic symbol, PCB footprint, and 3D model.
