SN74LVC161284DLR - Texas Instruments

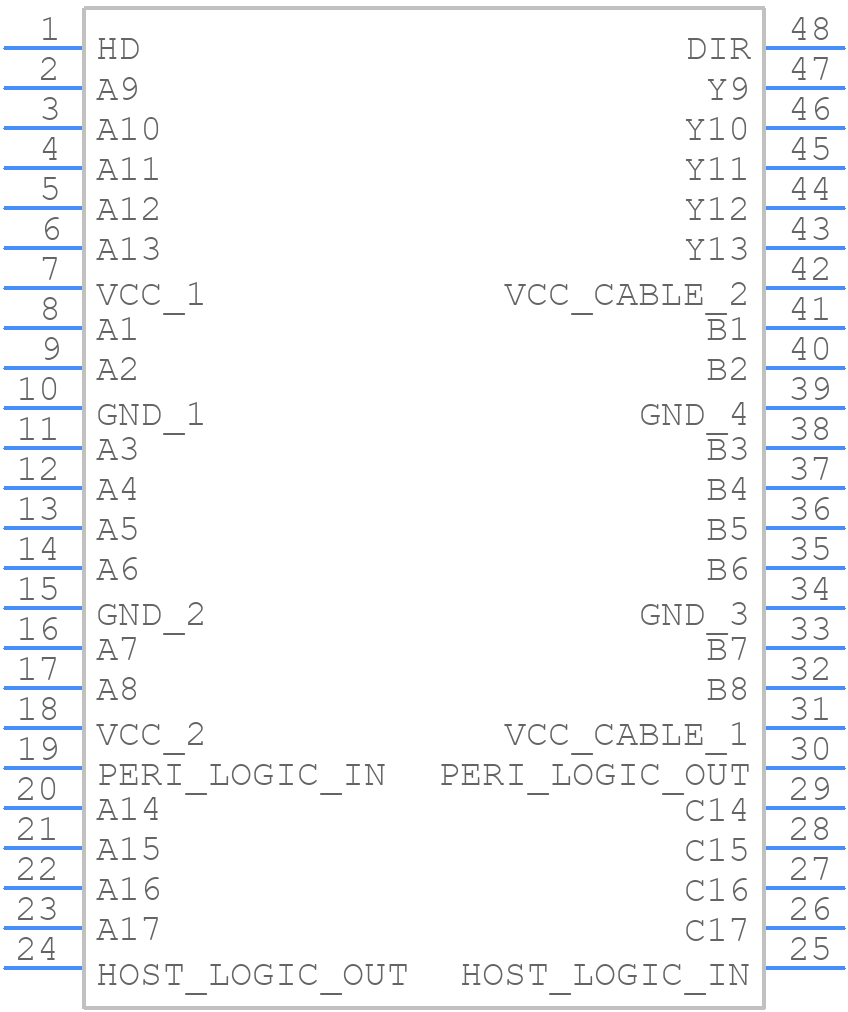

SN74LVC161284DLR Details

• Manufacturer Part Number:

  SN74LVC161284DLR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  SSOP-48

• Pin Count:

  48

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  CONTAINS 5 DRIVERS, 4 RECEIVERS AND EIGHT BI-DIRECTIONAL LINES

• Differential Output:

  NO

• Driver Number of Bits:

  8

• High Level Input Current-Max:

  0.00005 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  IEEE 1284

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e4

• Length:

  15.875 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  19

• Number of Functions:

  19

• Number of Terminals:

  48

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  1.46 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.014 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP48,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  40 ns

• Receiver Number of Bits:

  8

• Seated Height-Max:

  2.79 mm

• Supply Current-Max:

  45 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  40 ns

• Width:

  7.5 mm
