The maximum operating frequency of the SN74LVC646APW is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as minimizing trace length and impedance, using termination resistors, and avoiding signal reflections. Additionally, use a low-ESR capacitor for power decoupling and follow the recommended power supply filtering guidelines.
Yes, the SN74LVC646APW is compatible with 3.3V systems, as it operates from 1.65V to 3.6V. However, ensure that the input signals are within the recommended voltage range to maintain proper operation.
To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. The device has a maximum junction temperature of 150°C, so monitor the operating temperature to prevent overheating.
No, the SN74LVC646APW is not compatible with 5V systems, as it is designed for low-voltage applications. Applying 5V to the device can cause damage or malfunction.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74LVC646APW Overview

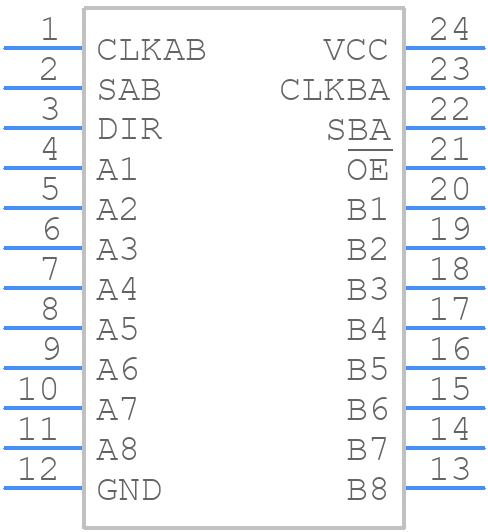

Use the download button to access the SN74LVC646APW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Bus Driver/Transceivers
