The maximum operating frequency of the SN74LVTH573DBR is 100 MHz, but it can vary depending on the system design and capacitive load.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors to minimize reflections. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74LVTH573DBR can be used in a 3.3V system. The recommended power supply voltage is 3.3V ± 0.3V, and the device can operate with a supply current of up to 20 mA.
To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after all input signals have been removed. Also, consider using a power sequencing controller to manage power-up and power-down sequences.
To minimize EMI and noise, use a compact layout, keep signal traces away from power traces, and use a ground plane to reduce radiation. Also, consider using a shielded enclosure and filtering components to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LVTH573DBR Overview

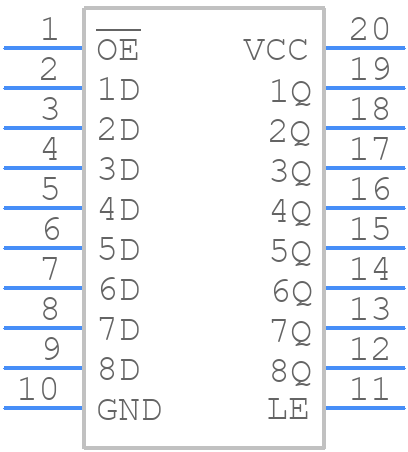

Use the download button to access the SN74LVTH573DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
