SN74LXC1T14DCKR - Texas Instruments

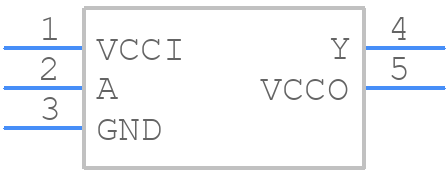

SN74LXC1T14DCKR Details

• Manufacturer Part Number:

  SN74LXC1T14DCKR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-SC70-5

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Family:

  LXC

• JESD-30 Code:

  R-PDSO-G5

• JESD-609 Code:

  e3

• Length:

  2 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  INVERTER

• Max I(ol):

  0.032 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  1

• Number of Inputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP5/6,.08

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.0055 mA

• Prop. Delay@Nom-Sup:

  83 ns

• Propagation Delay (tpd):

  8 ns

• Schmitt Trigger:

  YES

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  0.44 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  1.25 mm
