SN74TVC3010DGVR - Texas Instruments

Description: 10-Bit Voltage Clamp

Download SN74TVC3010DGVR Model
Schematic

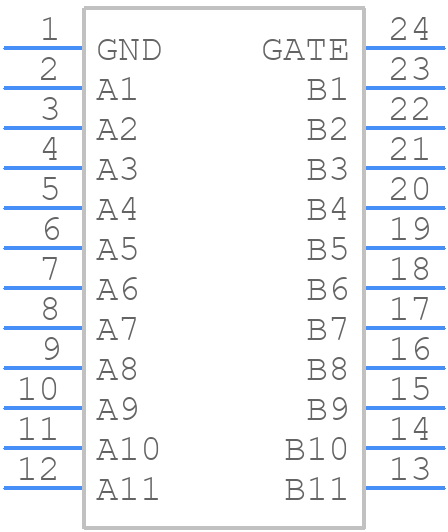

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74TVC3010DGVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGV (R-PDSO-G24)
click to zoom
3D Models
SN74TVC3010DGVR - Texas Instruments  - 3D model - Small Outline Packages - DGV (R-PDSO-G24)
click to zoom

SN74TVC3010DGVR Details

  • Manufacturer Part Number:

    SN74TVC3010DGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Family:

    74

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    11

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    0.6 V

  • Supply Voltage-Nom (Vsup):

    2.1 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

SN74TVC3010DGVR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SN74TVC3010DGVR is 1.65 V to 3.6 V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, follow the recommended layout guidelines in the datasheet.
  • No, the SN74TVC3010DGVR is not recommended for use in 5V systems. The maximum recommended operating voltage is 3.6V. Using it in a 5V system may cause damage to the device or affect its performance.
  • Power sequencing is not critical for the SN74TVC3010DGVR, but it's recommended to power up the VCC pin before the input signals to ensure proper device operation.
  • The SN74TVC3010DGVR can handle data rates up to 100 Mbps.
