The maximum cable length depends on the data rate and cable characteristics. As a general guideline, for a data rate of 1 Mbps, the maximum cable length is around 100 meters. However, it's recommended to consult the RS-485 standard and perform signal integrity analysis to determine the maximum cable length for a specific application.
The bus lines should be terminated with a 120-ohm resistor at each end of the network to prevent signal reflections and ensure reliable data transmission. The termination resistors should be connected between the differential signal lines (A and B) and ground.
Yes, the SN75108AN can be used in half-duplex or multi-point configurations. In half-duplex mode, the device can be used for both transmitting and receiving data, but not simultaneously. In multi-point mode, multiple devices can be connected to the same bus, and the SN75108AN can be used as a transceiver or receiver.
The minimum input voltage required for the SN75108AN to operate reliably is 4.5V. However, it's recommended to operate the device at a voltage of 5V ±10% to ensure reliable operation and meet the specifications outlined in the datasheet.
To protect the SN75108AN from ESD and EOS, it's recommended to follow proper handling and storage procedures, such as using anti-static bags and wrist straps, and avoiding exposure to high-voltage sources. Additionally, consider using ESD protection devices, such as TVS diodes, and following proper PCB design and layout guidelines to minimize the risk of EOS.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75108AN Overview

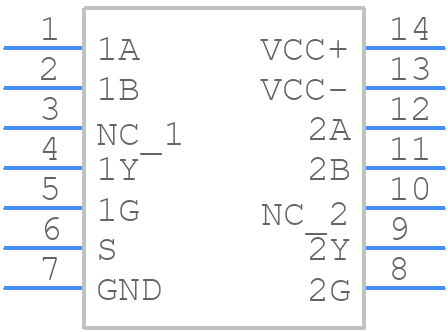

Use the download button to access the SN75108AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN751,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
