SN75115DR - Texas Instruments

Description: Bus Receivers Dual Differential Line Driver

Download SN75115DR Model

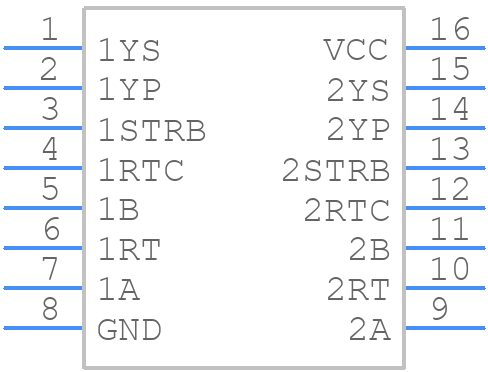

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN75115DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN75115DR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN75115DR Details

  • Manufacturer Part Number:

    SN75115DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPEN-COLLECTOR OR TOTEM-POLE OUTPUT

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    1.95 V

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Low Current-Max:

    0.015 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    75 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    75 ns

  • Width:

    3.9 mm

SN75115DR Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the data rate and cable characteristics. As a general guideline, for a data rate of 1 Mbps, the maximum cable length is around 100 meters. However, it's recommended to consult the RS-485 standard and perform signal integrity analysis to determine the maximum cable length for a specific application.
  • Proper termination is critical in an RS-485 network to prevent signal reflections and ensure reliable data transmission. A 120-ohm resistor should be connected between the differential lines (A and B) at each end of the bus. Additionally, a 220-ohm resistor can be connected in series with a 220-pF capacitor between the lines and ground at the receiver end to improve signal quality.
  • Yes, the SN75115DR can be used in half-duplex or multi-drop configurations. In half-duplex mode, the transmitter and receiver are switched using the DE (driver enable) and RE (receiver enable) pins. In multi-drop mode, multiple transceivers can be connected to the same bus, and each device can be addressed using a unique identifier.
  • The recommended operating supply voltage for the SN75115DR is between 4.75 V and 5.25 V. However, the device can operate with a supply voltage as low as 4.5 V and as high as 5.5 V, but with reduced performance and reliability.
  • Hot-swapping or inserting/removing devices in an RS-485 network can cause signal disturbances and errors. To minimize these effects, it's recommended to use a bus repeater or a buffer device to isolate the bus segments and prevent signal reflections. Additionally, the devices should be designed to handle the insertion and removal of devices without causing errors or data loss.
