1 RECEIVER ACTIVE UNDER SHUTDOWN; CONFIGURABLE TOTEM-POLE OUTPUTS; DIFFERENTIAL OUTPUT PAIRS
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.00004 A
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
9.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Out Swing-Min:
2 V
Output Characteristics:
3-STATE
Output Low Current-Max:
0.015 A
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
75 ns
Receiver Number of Bits:
1
Seated Height-Max:
1.75 mm
Supply Current-Max:
60 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
5.5 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
30 ns
Width:
3.9 mm
SN75116D Frequently Asked Questions (FAQs)
The maximum cable length depends on the data rate and the type of cable used. As a general rule, the maximum cable length for RS-485 is around 4000 feet (1219 meters) at a data rate of 100 kbps. However, this can be affected by factors such as cable quality, noise, and termination.
To prevent signal reflections, a termination resistor (typically 120 ohms) should be placed at each end of the RS-485 bus. The termination resistor should be connected between the differential signal lines (A and B) and should be matched to the characteristic impedance of the cable.
Yes, the SN75116D can be used in a multi-point configuration, where multiple transceivers are connected to the same bus. However, it's essential to ensure that only one device is transmitting at a time to prevent data collisions and bus contention.
The minimum input voltage required for the SN75116D to function properly is 4.5V. However, it's recommended to operate the device at a voltage between 4.75V and 5.25V for optimal performance.
To handle hot-swapping or inserting/removing devices from the RS-485 bus, it's recommended to use a bus buffer or repeater that can handle the transient conditions caused by device insertion or removal. Additionally, the device should be designed to handle the bus fault conditions and recover from them.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75116D Overview

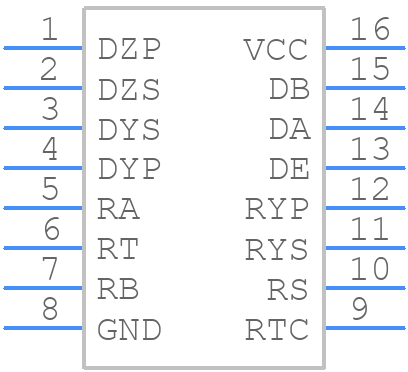

Use the download button to access the SN75116D schematic symbol, PCB footprint, and 3D model.
