- Part Number SN75124N
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N (R-PDIP-T)
- Released Date Apr 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SN75124N Details
-
Manufacturer Part Number:
SN75124N
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
DIP-16
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
SN75124N Frequently Asked Questions (FAQs)
-
The SN75124N can handle data rates up to 1 Mbps, making it suitable for low-to-medium speed applications such as industrial control systems, medical devices, and consumer electronics.
-
The SN75124N has a high common-mode rejection ratio (CMRR) of 80 dB, which helps to reject common-mode noise and EMI. Additionally, the device has a built-in electromagnetic interference (EMI) filter to further reduce the effects of EMI.
-
The maximum cable length that can be used with the SN75124N depends on the data rate and the type of cable used. As a general rule, the maximum cable length is approximately 1000 feet (305 meters) at a data rate of 1 Mbps. However, this can be extended to several thousand feet by using repeaters or hubs.
-
Yes, the SN75124N is designed to operate in harsh industrial environments with temperatures ranging from -40°C to 85°C. It also has a high level of immunity to electromagnetic interference (EMI) and radio-frequency interference (RFI), making it suitable for use in industrial control systems, motor control systems, and other applications where reliability is critical.
-
The SN75124N has a built-in bus contention mechanism that prevents data corruption in the event of multiple devices trying to access the bus simultaneously. Additionally, the device has a fault-tolerant design that allows it to continue operating even if one or more devices on the bus fail or are disconnected.
Trust Checks
Community Provided
System Verified
Community Approved
SN75124N Overview

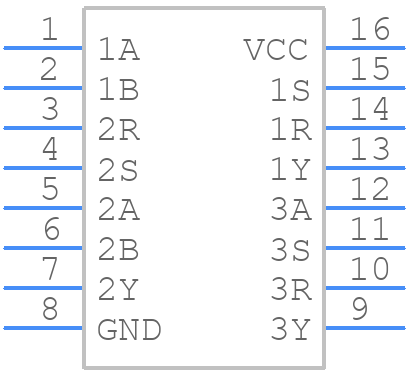

Use the download button to access the SN75124N schematic symbol, PCB footprint, and 3D model.
