SN75182D - Texas Instruments

Description: Texas Instruments SN75182D, Dual Line Receiver, 5 V, 14-Pin SOIC

Download SN75182D Model

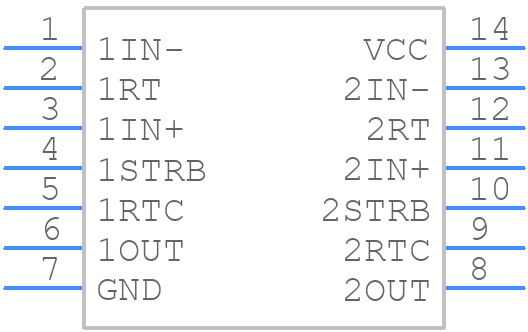

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN75182D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
SN75182D - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

SN75182D Details

  • Manufacturer Part Number:

    SN75182D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BUILT-IN LINE TERMINATION; RESPONSE CONTROL

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2.1 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.016 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    45 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    28 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN75182D Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the data rate and the type of cable used. As a general rule, the maximum cable length for RS-485 is around 4000 feet (1219 meters) at a data rate of 100 kbps. However, this can be affected by factors such as cable quality, noise, and termination. It's recommended to consult the application notes and perform testing to determine the maximum cable length for a specific application.
  • To prevent signal reflections, it's recommended to use a termination resistor at the end of the RS-485 bus. The value of the resistor should be equal to the characteristic impedance of the cable, which is typically around 120 ohms for RS-485 cables. Additionally, it's recommended to use a biasing network to maintain a stable common-mode voltage on the bus.
  • Yes, the SN75182D can be used in a multi-point configuration, where multiple transceivers are connected to the same RS-485 bus. However, it's recommended to use a repeater or a hub to boost the signal and ensure reliable communication. Additionally, it's important to ensure that the total bus length and the number of nodes do not exceed the recommended maximum values.
  • Hot-swapping of devices on the RS-485 bus can cause signal disturbances and errors. To handle hot-swapping, it's recommended to use a bus buffer or a repeater to isolate the bus segments and prevent signal reflections. Additionally, it's recommended to use a fault-tolerant protocol that can detect and recover from errors caused by hot-swapping.
  • The recommended power-up sequence for the SN75182D is to power up the VCC supply first, followed by the VEE supply. This ensures that the internal circuitry is properly initialized and that the device operates correctly. It's also recommended to use a power-up reset circuit to ensure that the device is properly reset during power-up.
