The maximum cable length depends on the data rate and cable characteristics. As a general guideline, for a data rate of 1 Mbps, the maximum cable length is around 100 meters. However, it's recommended to consult the RS-485 standard and perform signal integrity analysis to determine the maximum cable length for a specific application.
To prevent signal reflections, a termination resistor (typically 120 ohms) should be connected between the differential lines (A and B) at the end of the bus. Additionally, the termination resistor should be matched to the characteristic impedance of the cable to ensure maximum signal integrity.
Yes, the SN75183D can be used in a multi-point configuration, where multiple transceivers are connected to a common bus. However, it's essential to ensure that only one device is transmitting at a time to prevent data collisions and bus contention.
The SN75183D requires a minimum input voltage of 4.5V to operate correctly. However, it's recommended to operate the device at a voltage between 4.75V and 5.25V for optimal performance.
To handle hot-swapping of devices on the RS-485 bus, it's recommended to use a bus buffer or a repeater to isolate the bus segments and prevent signal disturbances. Additionally, the devices should be designed to handle the hot-swapping scenario, and the bus should be properly terminated to prevent signal reflections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75183D Overview

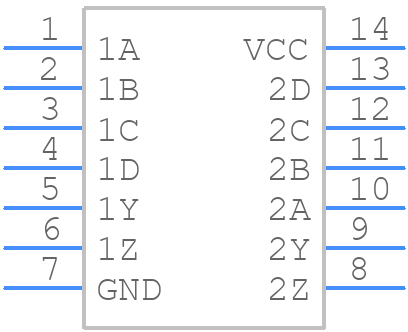

Use the download button to access the SN75183D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN751,
or try a keyword search, such as Line Driver or Receivers
