The maximum cable length depends on the specific application and the type of cable used. However, as a general rule, the SN75189ANE4 can support cable lengths up to 100 meters (328 feet) at a data rate of 1 Mbps. For longer cable lengths or higher data rates, repeaters or other signal conditioning devices may be required.
Yes, the SN75189ANE4 can be used in a multi-point configuration, but it requires additional circuitry to ensure that only one device is transmitting at a time. This can be achieved using a bus arbitration scheme or by using a separate enable signal for each device.
To ensure reliable data transmission over long distances, it is recommended to use a shielded twisted-pair cable, maintain a consistent impedance throughout the transmission line, and use a common-mode choke or other noise-reducing components to minimize electromagnetic interference (EMI). Additionally, implementing error-checking and correction mechanisms, such as CRC or checksum, can help detect and correct data errors.
The SN75189ANE4 is rated for operation up to 85°C (185°F), but it can be used in higher temperature environments with proper derating. However, it is recommended to consult the datasheet and perform thermal analysis to ensure that the device operates within its specified temperature range and does not exceed its maximum junction temperature.
To troubleshoot issues with the SN75189ANE4, start by verifying that the device is properly powered and configured. Check the signal integrity and quality using an oscilloscope or logic analyzer. Verify that the transmit and receive signals are properly terminated and that the cable is properly connected. If issues persist, consult the datasheet and application notes for troubleshooting guidelines or contact Texas Instruments support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75189ANE4 Overview

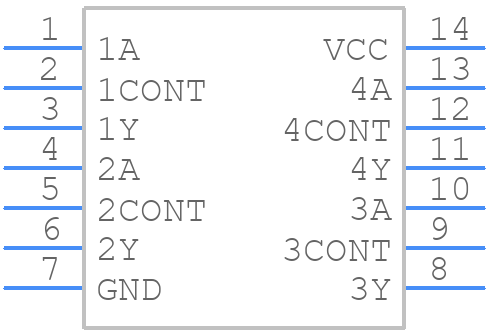

Use the download button to access the SN75189ANE4 schematic symbol, PCB footprint, and 3D model.
