The maximum cable length depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is around 100 meters at 9600 bps, 50 meters at 19200 bps, and 20 meters at 38400 bps. However, it's recommended to consult the RS-485 standard and perform signal integrity analysis to determine the maximum cable length for a specific application.
To prevent signal reflections, a termination resistor (typically 120 ohms) should be placed at both ends of the RS-485 bus. The termination resistor should be connected between the differential signal lines (A and B) and should be matched to the characteristic impedance of the cable.
Yes, the SN75196DWR can be used in a multi-point configuration, where multiple devices are connected to the same RS-485 bus. However, it's essential to ensure that only one device is transmitting at a time to prevent data collisions and errors.
There is no minimum number of devices that can be connected to the RS-485 bus. However, it's recommended to have at least two devices connected to the bus to ensure proper operation and to prevent signal reflections.
Yes, the SN75196DWR can operate with a 3.3V power supply. However, the device's output voltage levels may not be compatible with 3.3V logic levels. It's recommended to use a level translator or a voltage divider to ensure compatibility with 3.3V logic levels.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75196DWR Overview

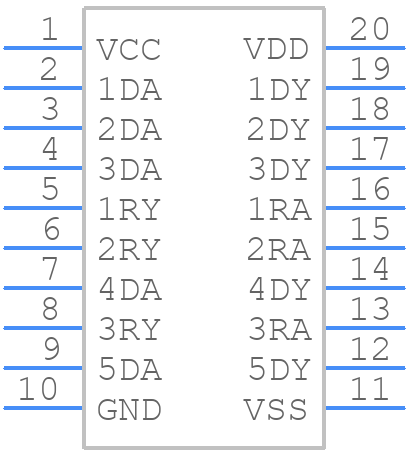

Use the download button to access the SN75196DWR schematic symbol, PCB footprint, and 3D model.
