SN75240P - Texas Instruments

Description: Dual USB Port Transient Suppressor

Download SN75240P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

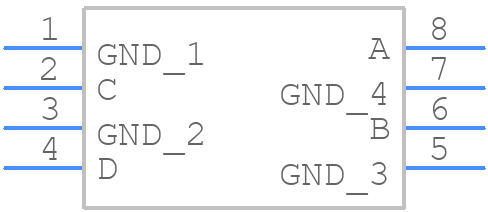

SN75240P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75240P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-(R-PDIP-T8)
click to zoom
3D Models
SN75240P - Texas Instruments - 3D model - Dual-In-Line Packages - P-(R-PDIP-T8)
click to zoom

SN75240P Details

  • Manufacturer Part Number:

    SN75240P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    8 V

  • Breakdown Voltage-Min:

    7 V

  • Breakdown Voltage-Nom:

    7 V

  • Clamping Voltage-Max:

    14 V

  • Configuration:

    2 BANKS, COMMON ANODE, 2 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MS-001BA

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Non-rep Peak Rev Power Dis-Max:

    60 W

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    6 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    5.5 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

SN75240P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SN75240P is -40°C to 85°C. However, it's essential to note that the device can operate up to 125°C for short periods, but this may affect its reliability and lifespan.
  • To ensure reliable operation in high-temperature environments, it's crucial to provide adequate heat sinking, ensure good airflow, and follow proper PCB design and layout guidelines. Additionally, consider using thermal interface materials and heat sinks to dissipate heat effectively.
  • The maximum allowable voltage on the input pins of the SN75240P is 5.5V. Exceeding this voltage may cause damage to the device or affect its performance.
  • Yes, the SN75240P can be used in a 3.3V system. The device is compatible with 3.3V logic levels, and its output voltage can be adjusted to match the system's voltage requirements.
  • To handle ESD protection for the SN75240P, follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in your design, such as TVS diodes or ESD protection arrays.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75240P Overview

Use the download button to access the SN75240P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN752, or try a keyword search, such as Transient Suppressors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
