SN75ALS1177N - Texas Instruments

SN75ALS1177N Details

• Manufacturer Part Number:

  SN75ALS1177N

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

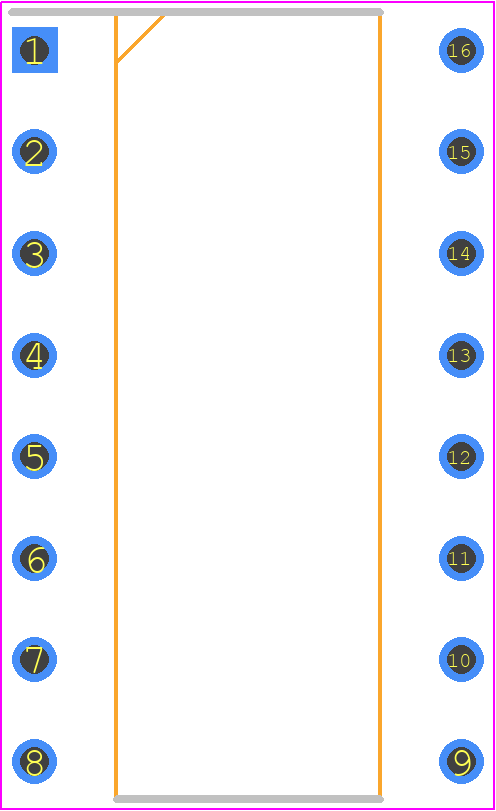

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  RECEIVER 3-STATE OUTPUT; ACTIVE-LOW ENABLE

• Differential Output:

  YES

• Driver Number of Bits:

  2

• High Level Input Current-Max:

  0.00002 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-422-B; TIA-422-B; EIA-485-A; TIA-485-A

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  1.5 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.008 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  37 ns

• Receiver Number of Bits:

  2

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  50 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.25 V

• Supply Voltage1-Min:

  4.75 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  22 ns

• Width:

  7.62 mm
