SN75ALS161N - Texas Instruments

Description: Octal General-Purpose Interface Bus Transceiver

Download SN75ALS161N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

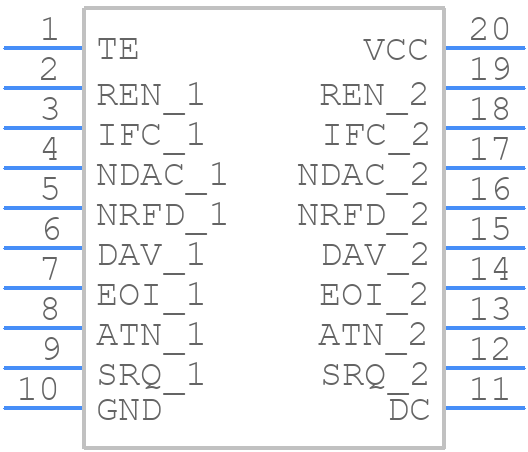

SN75ALS161N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75ALS161N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 Ld PDIP
click to zoom
3D Models
SN75ALS161N - Texas Instruments - 3D model - Dual-In-Line Packages - 20 Ld PDIP
click to zoom

SN75ALS161N Details

  • Manufacturer Part Number:

    SN75ALS161N

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    8

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    IEEE-488

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Number of Functions:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2.7 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.048 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    14 ns

  • Receiver Number of Bits:

    8

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    20 ns

  • Width:

    7.62 mm

SN75ALS161N Frequently Asked Questions (FAQs)

  • The SN75ALS161N can support data rates up to 100 Mbps, making it suitable for high-speed applications such as video transmission and high-speed data acquisition.
  • The SN75ALS161N has a high common-mode rejection ratio (CMRR) of 80 dB, which helps to reject common-mode noise and EMI. Additionally, the device has a shielded pinout that helps to reduce EMI radiation.
  • The SN75ALS161N has a low power consumption of 135 mW (typical) at 5 V, making it suitable for power-sensitive applications. The device also has a low standby power consumption of 10 mW (typical) when the enable input is low.
  • The SN75ALS161N has a skew of 1 ns (typical) and a jitter of 500 ps (typical), which can affect the timing and synchronization of signals in high-speed applications. System designers should take these parameters into account when designing the system clock and signal routing.
  • The SN75ALS161N has a junction-to-ambient thermal resistance (RθJA) of 60°C/W, which means that it can dissipate heat effectively. However, system designers should still ensure that the device is properly heatsinked and that the system has adequate airflow to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75ALS161N Overview

Use the download button to access the SN75ALS161N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75A, or try a keyword search, such as Line Driver or Receivers
