SN75C189ADBRE4 - Texas Instruments

Description: RS-232 Interface IC Quadruple Low-Power Line Receiver

Download SN75C189ADBRE4 Model

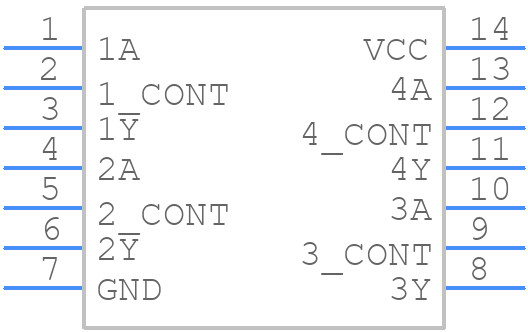

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN75C189ADBRE4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G14)
click to zoom
3D Models
SN75C189ADBRE4 - Texas Instruments  - 3D model - Small Outline Packages - DB (R-PDSO-G14)
click to zoom

SN75C189ADBRE4 Details

  • Manufacturer Part Number:

    SN75C189ADBRE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESPONSE CONTROL

  • High Level Input Current-Max:

    0.0083 A

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-232-F; TIA-232-F; V.28

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    2.1 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0032 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6000 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    6 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

SN75C189ADBRE4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SN75C189ADBRE4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour on the PCB can be used to dissipate heat. Additionally, the device's thermal resistance (RθJA) is specified in the datasheet, which can be used to estimate the junction temperature.
  • Although the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, it's recommended to operate the device within a narrower range of 4.75V to 5.25V to ensure optimal performance and minimize power consumption.
  • To ensure EMC, it's recommended to follow the guidelines in the application note SLVAE04, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the device's electromagnetic susceptibility (EMS) is specified in the datasheet, which can be used to estimate the device's immunity to electromagnetic interference.
  • Although the datasheet specifies a maximum clock frequency of 100 MHz, the actual clock frequency that the device can support depends on the system design, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to determine the maximum clock frequency that the device can support in a specific system design.
