Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize EMI.
The SN75DP118RHHR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour on the PCB can be used to dissipate heat. Additionally, the device can be mounted on a heat sink or a metal core PCB to further improve thermal dissipation.
The maximum cable length supported by the SN75DP118RHHR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at data rates up to 1 Gbps. For longer cable lengths, repeaters or active cables may be required.
The SN75DP118RHHR has several configuration options, including pin strapping and register programming. Texas Instruments provides a configuration guide in the application note SLVAE03, which includes examples and guidelines for configuring the device for specific applications such as HDMI, DisplayPort, and USB.
The SN75DP118RHHR requires a specific power sequencing and supply voltage to ensure proper operation. The recommended power sequencing is to power up the device's 1.2V supply (VCC) before the 3.3V supply (VCCA). The device can operate from a single 3.3V supply, but separate 1.2V and 3.3V supplies are recommended for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75DP118RHHR Overview

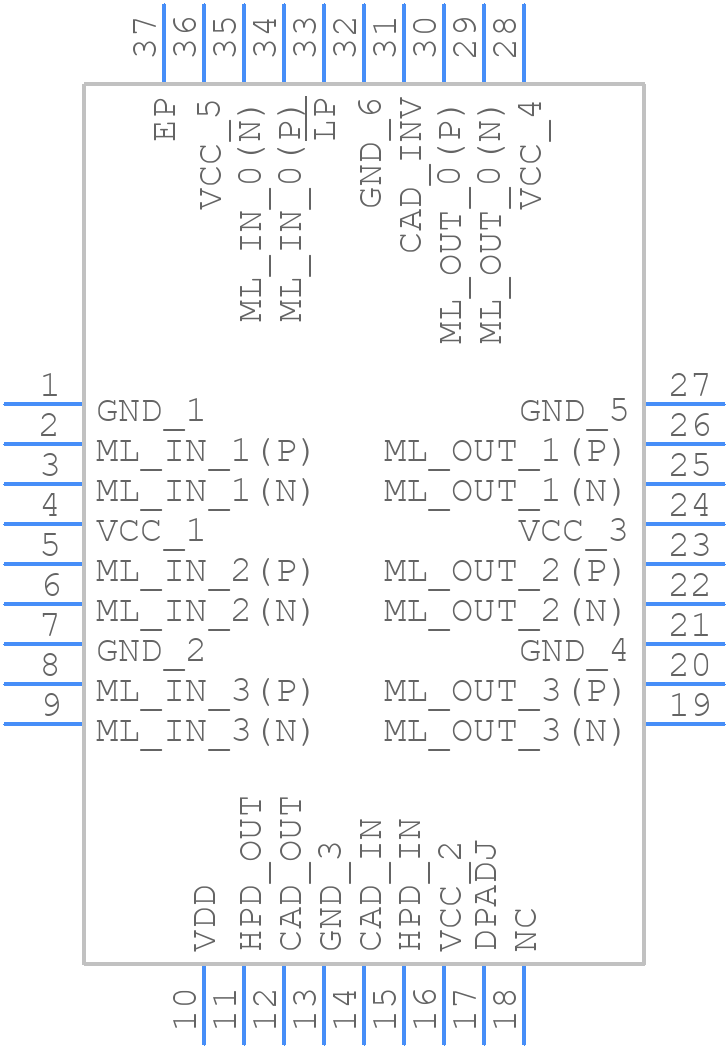

Use the download button to access the SN75DP118RHHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D,
or try a keyword search, such as Other Consumer ICs
