Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN75DP129RHHT is a highly configurable device, and the configuration depends on the specific display resolution and refresh rate. Texas Instruments provides a DisplayPort Configuration Tool that helps engineers generate the necessary configuration files and settings for their specific application.
The SN75DP129RHHT supports cable lengths up to 3 meters (10 feet) at a data rate of 5.4 Gbps per lane, and up to 2 meters (6.6 feet) at a data rate of 8.1 Gbps per lane, assuming a high-quality cable with minimal attenuation and distortion.
Texas Instruments provides a troubleshooting guide in the application note SLVAE05, which includes steps for debugging common issues, such as signal integrity problems, display artifacts, and system-level issues. Additionally, engineers can use tools like oscilloscopes and signal analyzers to debug the signal quality and integrity.
The SN75DP129RHHT is compatible with other DisplayPort devices and standards, including DisplayPort 1.4, HDMI 2.0, and USB-C. It also supports multiple data rates, including RBR (1.62 Gbps), HBR (2.7 Gbps), and HBR2 (5.4 Gbps), making it a versatile solution for various display applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75DP129RHHT Overview

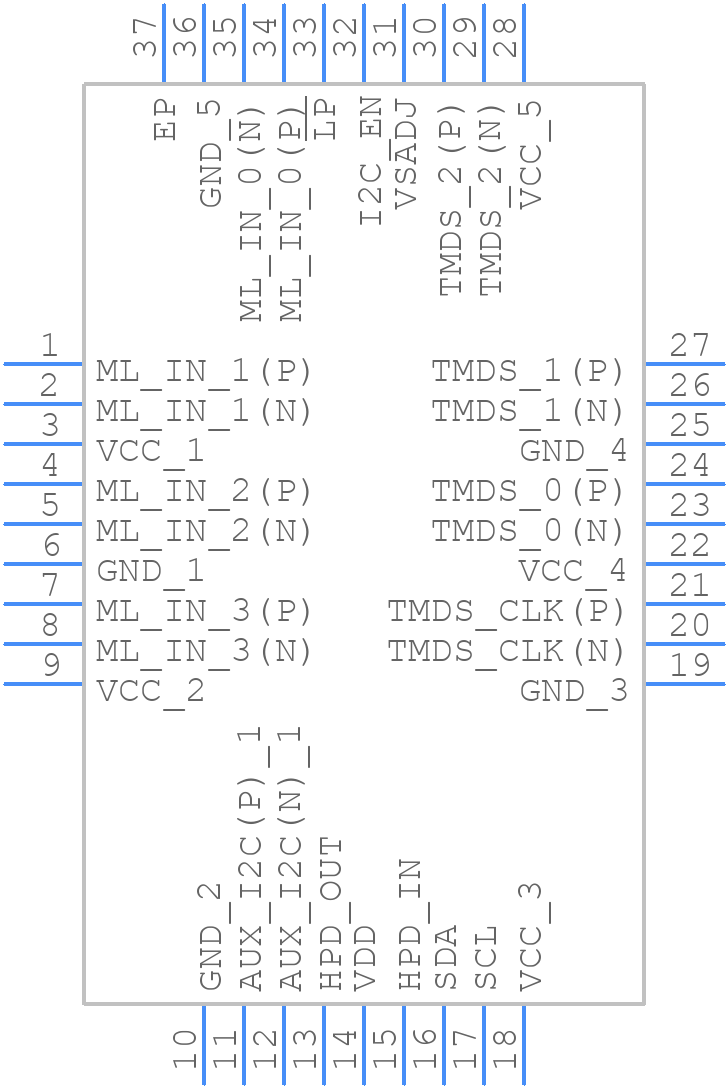

Use the download button to access the SN75DP129RHHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
