Part Image

SN75DP130DSRGZT - Texas Instruments

Description: DisplayPort Redriver Supporting RBR, HBR, and HBR2 (5.4Gbps)

Download SN75DP130DSRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

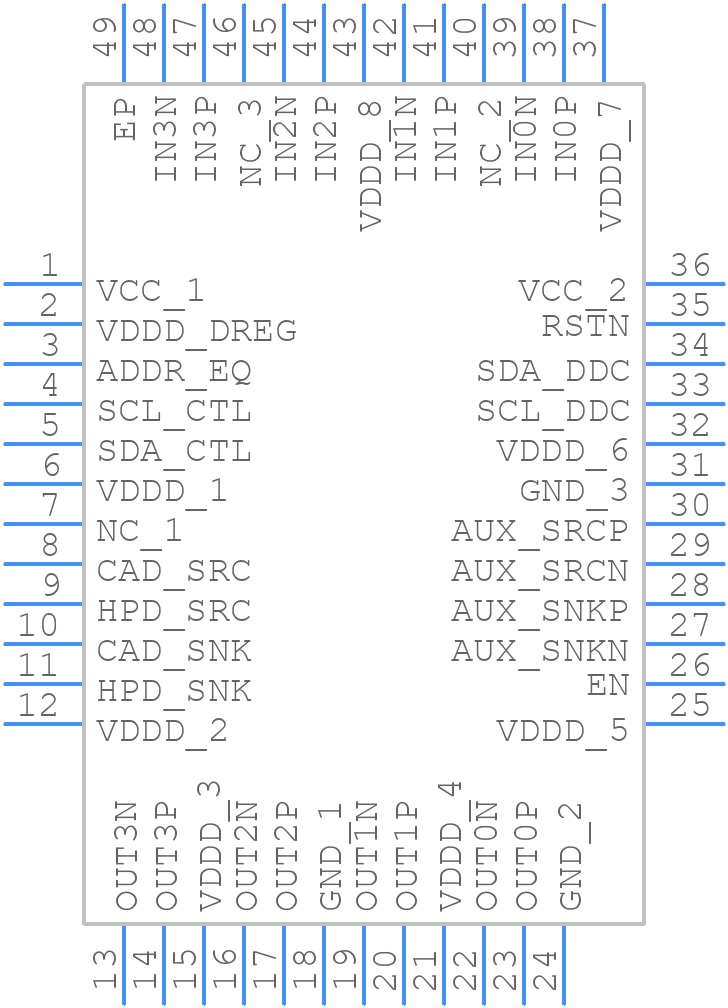

SN75DP130DSRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75DP130DSRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D_1
click to zoom
3D Models
SN75DP130DSRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048D_1
click to zoom

SN75DP130DSRGZT Details

  • Manufacturer Part Number:

    SN75DP130DSRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

SN75DP130DSRGZT Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN75DP130DSRGZT is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at data rates of up to 10 Gbps.
  • To ensure signal integrity with the SN75DP130DSRGZT, it is recommended to follow proper PCB design and layout guidelines, such as using differential pairs, minimizing trace lengths, and using signal shielding. Additionally, the device's built-in features such as equalization and de-emphasis can be used to improve signal quality.
  • The power consumption of the SN75DP130DSRGZT varies depending on the specific application and operating conditions. However, according to the datasheet, the typical power consumption is around 350 mW at 3.3V supply voltage.
  • Yes, the SN75DP130DSRGZT is rated for operation over an industrial temperature range of -40°C to 85°C, making it suitable for use in industrial and automotive applications.
  • The SN75DP130DSRGZT can be configured for different data rates through the use of external resistors and capacitors. The device also has built-in features such as automatic data rate detection and adaptation, which can simplify the configuration process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75DP130DSRGZT Overview

Use the download button to access the SN75DP130DSRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D, or try a keyword search, such as Other Consumer ICs
