The maximum cable length supported by the SN75DP130SSRGZT is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at data rates of up to 10 Gbps.
To ensure signal integrity with the SN75DP130SSRGZT, it is recommended to follow proper PCB design guidelines, such as using differential pairs, minimizing trace lengths, and using signal shielding. Additionally, the device's built-in features, such as equalization and clock data recovery, can help to improve signal integrity.
The power consumption of the SN75DP130SSRGZT varies depending on the specific application and operating conditions. However, according to the datasheet, the typical power consumption is around 350 mW at 3.3 V and 10 Gbps data rate.
The SN75DP130SSRGZT can be configured for different data rates through the use of external resistors and capacitors. The device also has a built-in rate select pin that allows for dynamic data rate switching. Refer to the datasheet for specific configuration guidelines.
The operating temperature range of the SN75DP130SSRGZT is -40°C to 85°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75DP130SSRGZT Overview

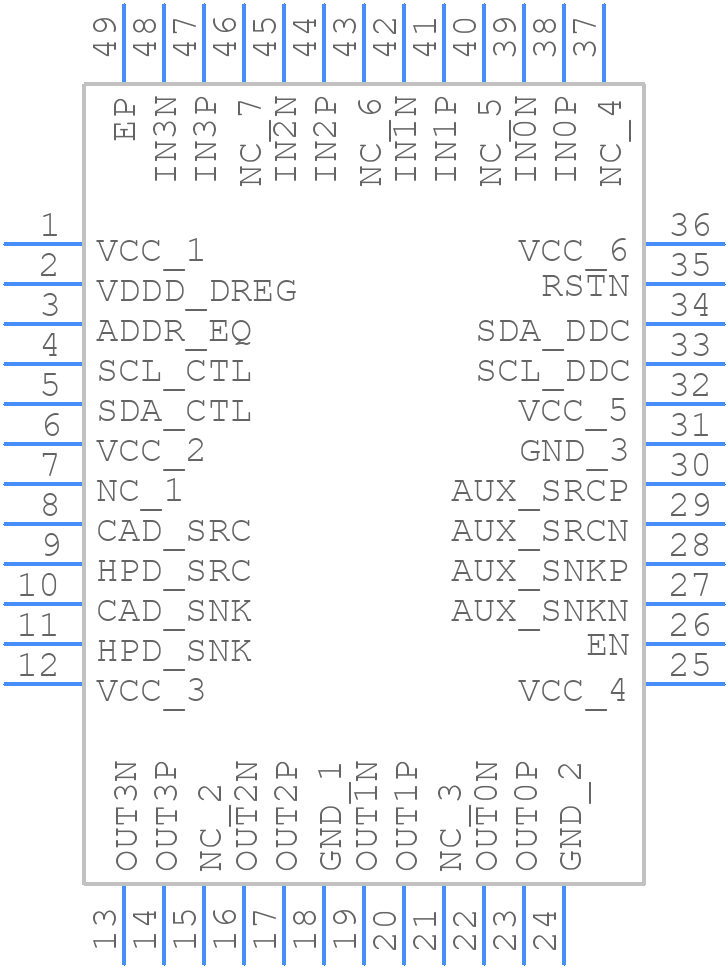

Use the download button to access the SN75DP130SSRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D,
or try a keyword search, such as Other Consumer ICs
