SN75DP159RGZR - Texas Instruments

Description: 6 Gbps DP++ to HDMI Retimer

Download SN75DP159RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

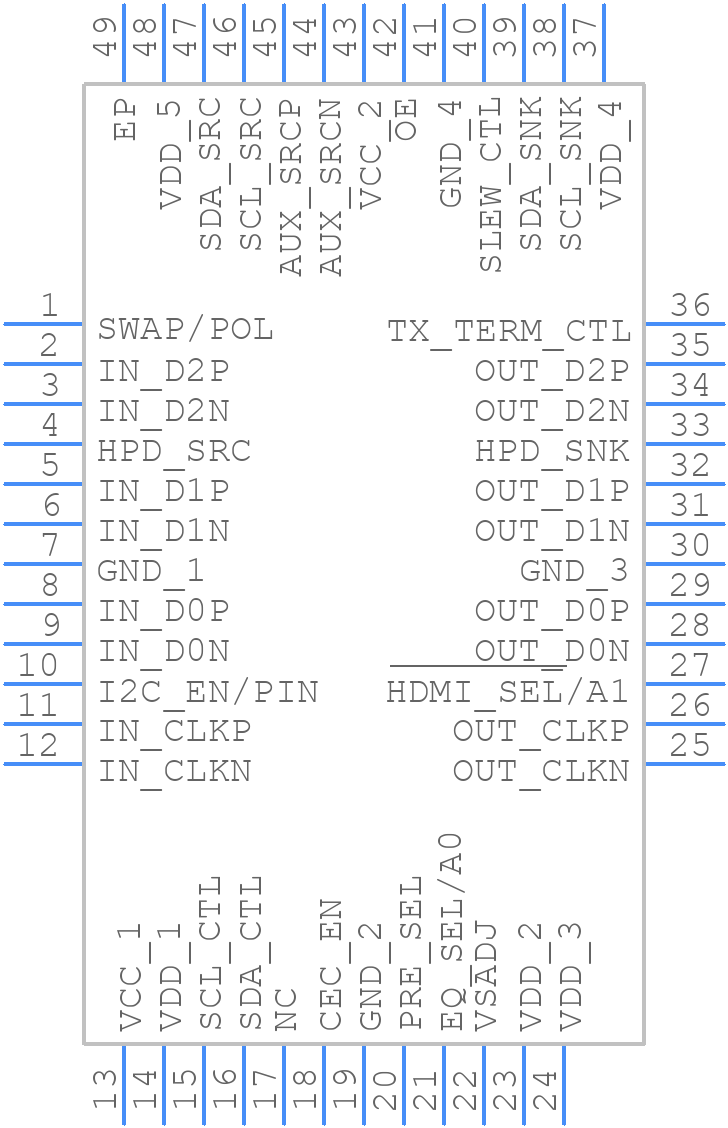

SN75DP159RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75DP159RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AFE031AIRGZR
click to zoom
3D Models
SN75DP159RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - AFE031AIRGZR
click to zoom

SN75DP159RGZR Details

  • Manufacturer Part Number:

    SN75DP159RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH A 3.3V SUPPLY

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.27 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

SN75DP159RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • The SN75DP159RGZR has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, follow the recommended PCB layout to minimize thermal resistance.
  • The maximum cable length supported by the SN75DP159RGZR depends on the specific application and the type of cable used. As a general guideline, the device supports cable lengths up to 30 meters at 10 Gbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • The SN75DP159RGZR is a programmable device that can be configured for different data rates using the SPI interface. The device has multiple registers that control the transmit and receive equalization, and the clocking mode. Consult the datasheet for the specific register settings for different data rates.
  • The power consumption of the SN75DP159RGZR depends on the specific application and the data rate. The device has a typical power consumption of 350 mW at 10 Gbps. However, the power consumption can be reduced by using the device's power-saving features, such as the low-power mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75DP159RGZR Overview

Use the download button to access the SN75DP159RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D, or try a keyword search, such as Other Interface ICs
