SN75DPHY440SSRHRT - Texas Instruments

Description: MIPI® CSI-2/DSI DPHY Retimer

Download SN75DPHY440SSRHRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

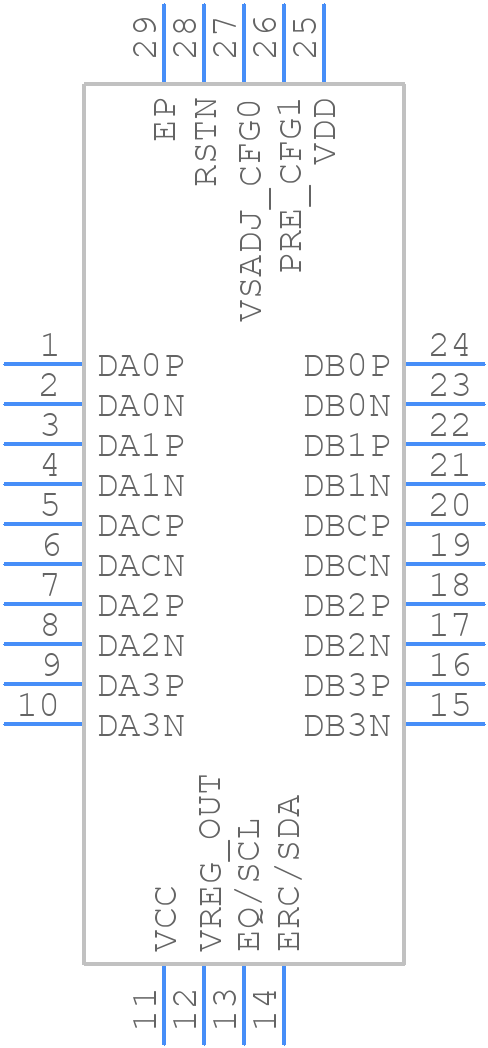

SN75DPHY440SSRHRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75DPHY440SSRHRT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
SN75DPHY440SSRHRT - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

SN75DPHY440SSRHRT Details

  • Manufacturer Part Number:

    SN75DPHY440SSRHRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-03-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

SN75DPHY440SSRHRT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply with capacitors.
  • To ensure EMC, it's recommended to use a shielded cable, keep the cable length as short as possible, and use a common mode filter. Additionally, the PCB should be designed with a solid ground plane and the device should be placed in a shielded enclosure.
  • The maximum cable length supported by the SN75DPHY440SSRHRT is 30 meters, but this can vary depending on the specific application and the quality of the cable.
  • To troubleshoot issues with the SN75DPHY440SSRHRT, start by checking the power supply voltage, then verify the signal integrity using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered to the PCB.
  • The SN75DPHY440SSRHRT is rated for operation up to 85°C, but it's recommended to derate the device for operation above 70°C. It's also recommended to use a heat sink to ensure reliable operation in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75DPHY440SSRHRT Overview

Use the download button to access the SN75DPHY440SSRHRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
