Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The SN75LBC174ADWR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour can be used to connect the thermal pad to the thermal plane. Additionally, the device can be mounted on a heat sink or a metal core PCB to further improve thermal dissipation.
The maximum cable length that can be driven by the SN75LBC174ADWR depends on the cable characteristics, signal frequency, and desired signal quality. As a general guideline, the device can drive cables up to 100 meters long at a data rate of 100 Mbps. However, it's recommended to perform signal integrity simulations and testing to determine the maximum cable length for a specific application.
Yes, the SN75LBC174ADWR can be used in a redundant or fault-tolerant system. The device has a built-in fault detection mechanism that can detect faults such as open circuits, short circuits, and over-temperature conditions. The device can also be configured to operate in a redundant mode, where two or more devices are used to provide redundant signal paths.
To ensure EMC with the SN75LBC174ADWR, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding and filtering components as needed. Additionally, the device should be placed in a metal enclosure or shielded area to reduce electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LBC174ADWR Overview

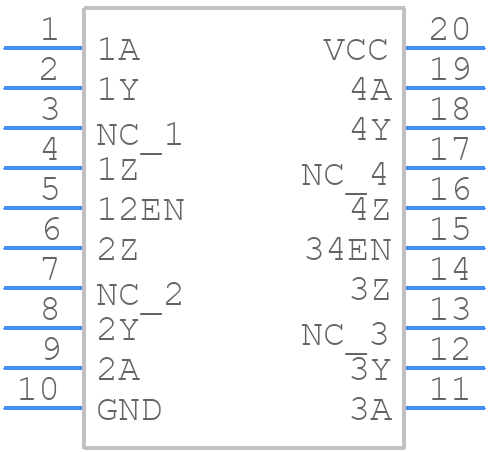

Use the download button to access the SN75LBC174ADWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
