SN75LBC175AN - Texas Instruments

Description: RS-422/RS-485 Interface IC Quad Differential Line Receivers

Download SN75LBC175AN Model
Schematic
symbols

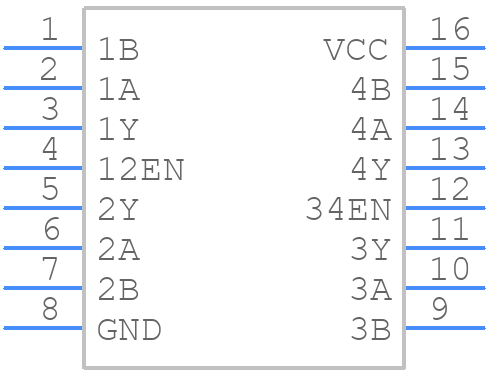

Schematic symbol is unavailable for download
