SN75LVDS051D - Texas Instruments

Description: 2/2 Transceiver Full LVDS 16-SOIC

Download SN75LVDS051D Model

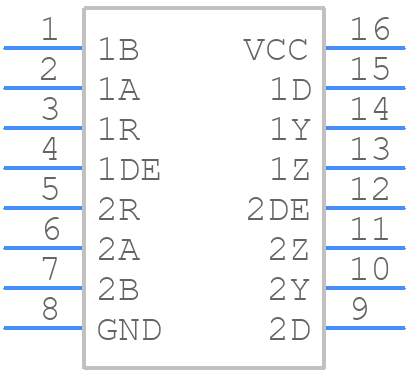

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN75LVDS051D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16).
click to zoom
3D Models
SN75LVDS051D - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16).
click to zoom

SN75LVDS051D Details

  • Manufacturer Part Number:

    SN75LVDS051D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    0.247 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    6 ns

  • Width:

    3.9 mm

SN75LVDS051D Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the signal frequency, cable quality, and environment. As a general guideline, Texas Instruments recommends a maximum cable length of 10 meters at 1.5 Gbps and 5 meters at 3 Gbps. However, it's essential to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
  • The SN75LVDS051D has internal 100-ohm differential termination resistors. However, it's recommended to add external termination resistors (100 ohms, 1% tolerance) at the receiver end to ensure signal integrity and minimize reflections. The termination resistors should be placed as close to the receiver pins as possible.
  • The power-up sequence is not explicitly stated in the datasheet. However, it's recommended to power up the VCC supply before the input signals. This ensures that the internal biasing and termination circuits are established before the input signals are applied. A power-up sequence of VCC, then input signals, is recommended.
  • The SN75LVDS051D is specified to operate from a 2.5V to 3.6V supply voltage. While it's possible to use the device with a 3.3V supply voltage, the output voltage swing may be reduced, and the device's performance may be affected. It's recommended to consult the datasheet and perform testing to ensure the device meets the required specifications at 3.3V.
  • To minimize EMI and RFI, it's essential to follow proper PCB layout and design practices. This includes using a solid ground plane, separating the LVDS signals from other signals, and using shielded cables. Additionally, consider using EMI filters or common-mode chokes to reduce emissions. Texas Instruments also provides guidelines for EMI reduction in their application notes and design guides.
