Description:Data Channel Compression at up to 163 Million Bytes per Second Throughput Suited for SVGA, XGA, or SXGA Data Transmission From Controller to Display With Very
The maximum cable length supported by the SN75LVDS84DGGR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 10 meters (33 feet) at a data rate of 1.5 Gbps.
To ensure signal integrity with the SN75LVDS84DGGR, it is recommended to follow proper PCB design and layout guidelines, such as using differential pairs, minimizing trace lengths, and using shielding and termination resistors as needed. Additionally, the use of high-quality cables and connectors can also help to minimize signal degradation.
The power consumption of the SN75LVDS84DGGR is dependent on the specific application and operating conditions. However, according to the datasheet, the typical power consumption is around 150 mW at a supply voltage of 3.3 V and a data rate of 1.5 Gbps.
Yes, the SN75LVDS84DGGR is rated for operation over a temperature range of -40°C to 85°C, making it suitable for use in high-temperature applications. However, it is recommended to follow proper thermal management practices to ensure reliable operation.
To troubleshoot issues with the SN75LVDS84DGGR, it is recommended to follow a systematic approach, starting with verifying the power supply and clock signals, then checking the transmitter and receiver circuits, and finally verifying the data transmission and reception. Additionally, using oscilloscopes and logic analyzers can help to identify signal integrity issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LVDS84DGGR Overview

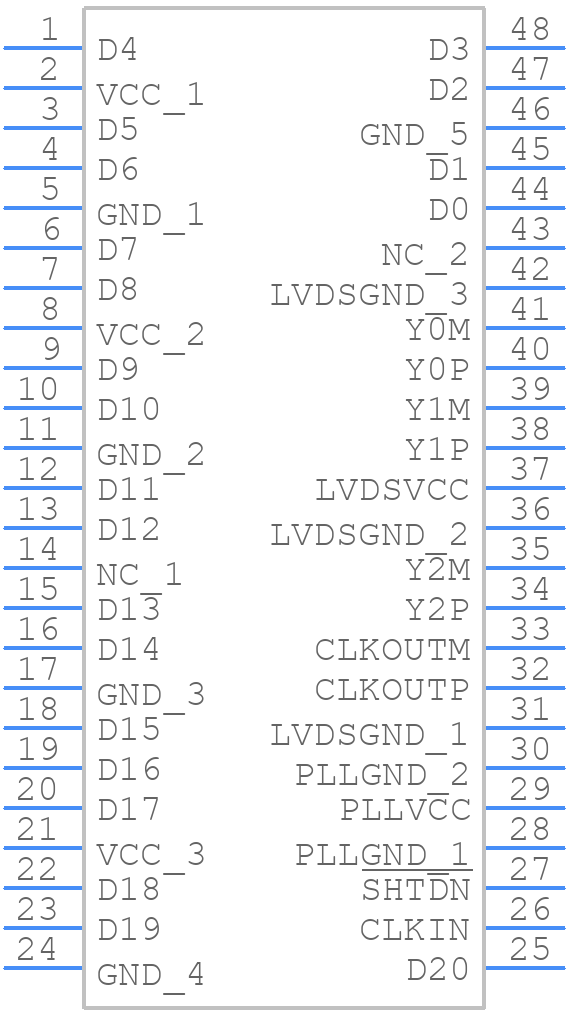

Use the download button to access the SN75LVDS84DGGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
